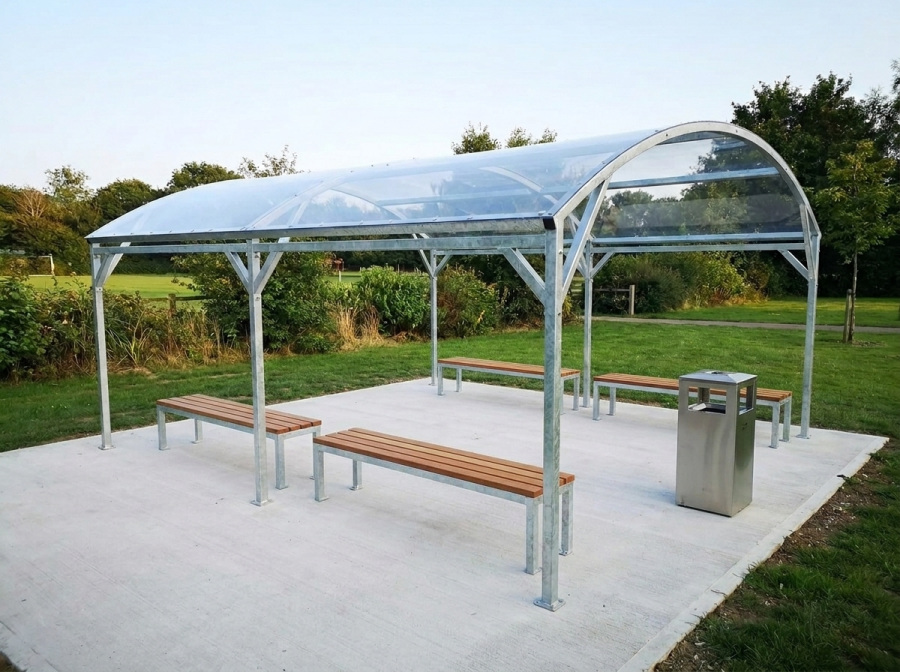

The Bolton Smoking Shelter is a great shelter choice for all types of locations from businesses to retail parks. The strong aesthetically pleasing smoking shelter offers a practical solution to the British weather.



  • 4100mm overall length
  • 4100mm overall depth
  • 2100mm overall height
  • Uprights made of 50mm steel tube, roof frame made of 50mm tube
  • Powder coated colour finish
  • Roof sheets are clear view Polycarbonate 3mm thick sheeting
  • The main bay can accommodate up to 20 people. Extensions bays also available.

Supplied in component form for easy installation on site. Cladding/roofing needs to be fixed on site. Sheeting is clamped to frame using clamping strips. Legs can be flanged for bolting down to a suitable concrete base (400 cube minimum) or with ragged ends for casting into the ground.


Ground fixing bolts can be supplied extra. Flanged version: 16 16mm bolts required per flanged main bay, 8 per flanged extension bay Ragged version: Excavate a hole 500mmx500mmx400mm deep for casting in each end.

Delivery time:2-4 Weeks
